Welded Wire Mesh
Materials: high quality low carbon steel wire Treatment of net surface: hot dipped galvanized,electric galvanized,PVC coated,etc.
| Specification List of Welded Wire Mesh | ||
| Openign | Wire Diameter | |
| In "inch" | In Metric Unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | BWG22-BWG24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | BWG19-BWG22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | BWG16-BWG23 |
| 5/8" x 5/8" | 16mm x 16mm | BWG18-BWG21 |
| 3/4" x 3/4" | 19.1mm x 19.1mm | BWG16-BWG21 |
| 1" x 1/2" | 25.4mm x 12.7mm | BWG16-BWG21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | BWG14-BWG19 |
| 1" x 2" | 25.4mm x 50.8mm | BWG14-BWG16 |
| 2" x 2" | 50.8mm x 50.8mm | BWG12-BWG16 |
|
Technical Note: 1,Standard Roll Length:30m, Width:0.5m --2.0m. 2,Package:In waterproof paper in rolls. Custom Sizes and Package available at request. |
||
| PVC Coated Welded Mesh | ||
| Openign | Wire Diameter | |
| In "inch" | In Metric Unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | BWG16-BWG21 |
| 3/4" x 3/4" | 19mm x 19mm | BWG16-BWG21 |
| 1" x 1" | 25.4mm x 25.4mm | BWG15-BWG20 |
|
Technical Note: 1,Standard Roll Length:30m, Width:0.5m --2.0m. 2,Package:In waterproof paper in rolls. Custom Sizes and Package available at request. |
||
|
MOQ：25 Tons |
||
Materials applied for welded wire mesh products include Low carbon steel wire,iron wire,Galvanized steel wire,PVC coated iron wire in blue,green,yellow and other colors
* Strong welded and bright luster. 2 inch by 4 inch openings keep out pests and small critters
* Strong mesh, won’t come loose if cut in pieces or under pressure.
* Galvanized before welding. Anti-corrosive and anti-rust.
* Great for property boundaries, enclosing gardens and more
Features: Versatile; High strength; Easy cutting shearing; High solid structure; Wires hold together; Easy handling; corrosion-resisting; oxidation-resisting.
Uses: Widely used in industry, agriculture, building, transportation, mine, lawn, cultivation, guard, decoration, machine protection, Fencing protective screening ,supermarket shelves , interior & exterior decortation ,are- puca shelf, specimen holder, kitchenware,mariculture, poultry farming, animal cage, filer etc.

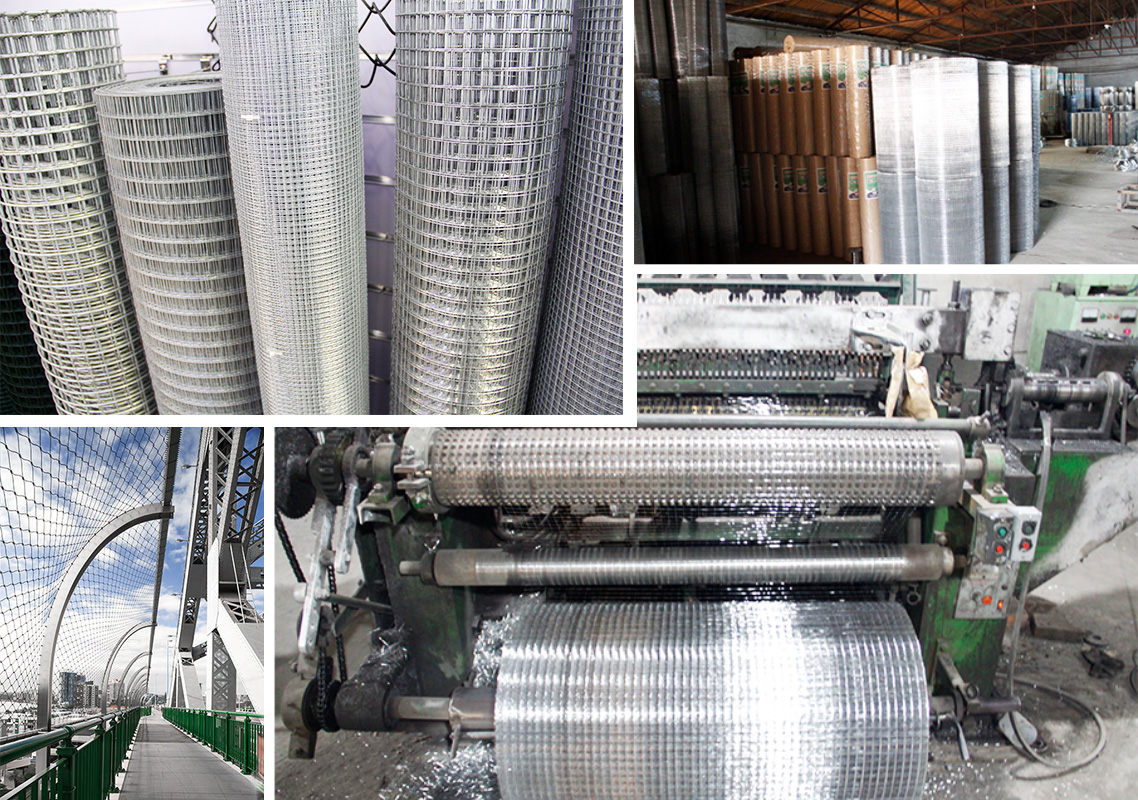

Welded Wire Mesh Production Line
Packaging & Shipping
Standard export packing, Or according to customer's needs.
