Zinc Aluminium Alloy Wire
Zinc Aluminium Alloy wire,known as Galfan wire or Galfian coated wire.
Diameter range | BWG6-BWG26 |
Zinc coated | 20-400g/m2 |
Tensile strength | 350-550 N/mm2 |
Elongation | 20%-30% |
Coil weight | 1kg-1000kgs |
Standard | ASTM A 641 |
MOQ:25 Tons |
|
Gauge | SWG | BWG | AWG | |||
Inch | mm | Inch | mm | Inch | mm | |
5 | 0.212 | 5.385 | 0.220 | 5.588 | 0.182 | 4.621 |
6 | 0.192 | 4.877 | 0.203 | 5.156 | 0.162 | 4.115 |
7 | 0.176 | 4.47 | 0.180 | 4.572 | 0.144 | 3.665 |
8 | 0.159 | 4.046 | 0.165 | 4.191 | 0.129 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0508 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0453 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0403 | 1.024 |
19 | 0.048 | 1.016 | 0.042 | 1.067 | 0.0359 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.032 | 0.812 |

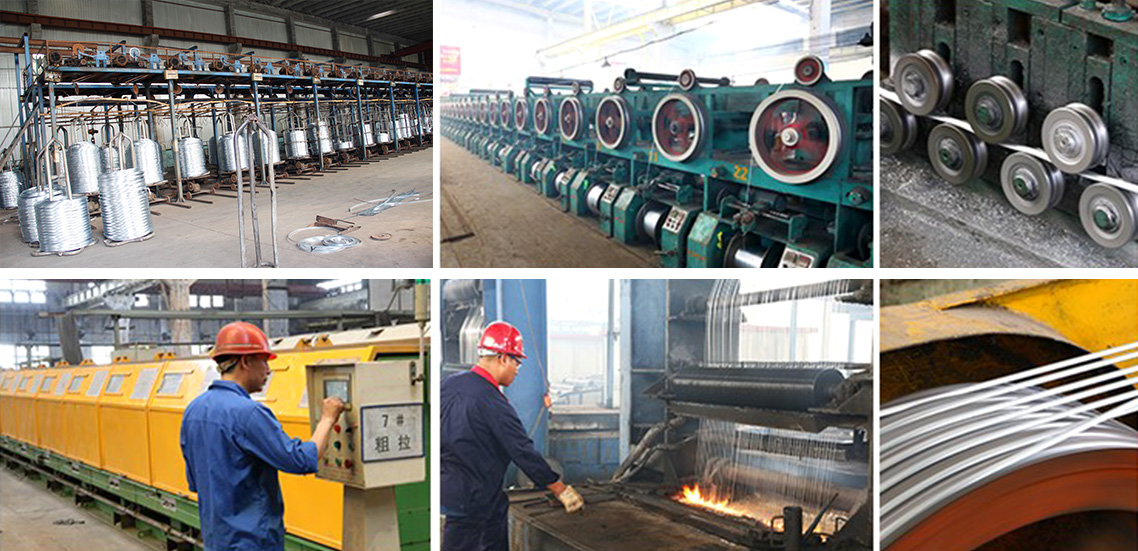

Zinc Aluminum Wire Production
